Description

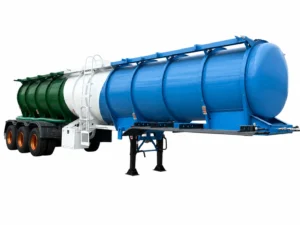

3 Axle 20CBM Sulfuric Acid Tanker Trailer is intended for specialized liquid transport after a product compatibility review. Tank material, lining and fittings must be selected around the exact chemical and operating conditions.
Where this trailer fits
- Provide the liquid name, safety data sheet, temperature and concentration.
- Verify compatibility across the tank shell, lining, gaskets, valves and hoses.
- Confirm cleaning arrangements, allowable service and applicable tank documentation.
Technical specification
Manufacturer-listed configuration for this model. Dimensions and component selections should be read together with the confirmed order drawing.
| Product Name | 3 Axle 20CBM Sulfuric Acid Tanker Trailer |
|---|---|
| Overall dimension | 11500mm * 2500mm *3700mm |
| Transport | sulfuric acid |
| Manhole cover | stainless steel manhole cover |
| Bottom valve | Aluminum API pneumatic bottom valve |
| Axles | 3 axles |
| Suspension | Heavy duty mechanical suspension |
| Tire | 12 units |
| Discharging Pipe | 4'' rubber pipe, 6m/piece, 2 pieces |
| King pin | 2/3.5 inch |
| Landing gear | JOST |
| Brake system | 2 line pneumatic brake system |
| Electrical system | standard 24V; 7 ways receptacle; LED lamps |
Selection checklist
- Chemical name and safety data sheet
- Concentration and temperature
- Shell, lining and seal compatibility
- Loading, discharge and cleaning equipment
- Applicable certification and inspection scope
Buying and ownership questions
What configuration does this listing describe?
The technical table reproduces the manufacturer-listed equipment for this model. Where alternative components or sizes are listed, the order specification must identify the selected option.
How should I assess the working load?
Match the actual load to the documented trailer rating, axle and tire limits, tractor capability and route requirements. A supplier capacity figure alone does not establish the permitted road payload.
What information is needed to select the right version?
Provide chemical name and safety data sheet, concentration and temperature, shell, lining and seal compatibility, together with the delivery ZIP code and the intended operating route. This allows the configuration and delivery plan to be checked against the job.
What is included with delivery?
The confirmed order identifies the trailer specification, supplied accessories and delivery scope. Delivery charges and eligibility follow the company shipping policy; do not assume an optional pump, compressor, hydraulic kit or other accessory is included unless specified.
What should I check for US use?
Verify the model-specific identification and certification documents, import eligibility and registration requirements before ordering for US road use. Published supplier specifications do not establish US approval.
Delivery and support
Contact Lenova Group with reference LNV-TRL-030 and your delivery location. Review the shipping policy, warranty policy and returns policy for the terms that apply to your order.
Technical reference: manufacturer model specification. The listed figures are supplier data; confirm the final configuration and documentation for the intended application.
